We've heard you! Ergonomic, Stable and Stiff by the quality of the raw materials and their thicknesses, combined with new painting tools, Extreme Reinforcements and Welding! .... Don't be surprised by the appearances! At RSeat you are not in the save of materials category! Our new 2021 range is without any compromise! Our investments in innovative technical solutions, combined with a modern production tool dedicated exclusively to the quality of Simracing and eSport, allow RSeat to guarantee you ultra-high quality chassis, with an unfailing durability and will be compatible with the products that will be available in the future for Simracing.
Wheel console has been reengineered and provides maximum rigidity quality, for Simracers who are looking for the most demanding feel and feedback from the steering wheel. Ready for maximum torque from high range Direct Drive wheels. New ! as an option : Simucube Wheel mount, for SIMUCUBE1, SIMUCUBE2 Sport / Pro / Ultimate, VRS DirectForce Pro, Mige motor and more..
New ! Pedals plate support engineered to bear maximum braking forces from hydraulic pedals and with sliders for easy adjustment and non-slip aluminum plate up to the seat… SimTag, Heusinkveld, Ricmotech, Racewerk, NSH Pedals will not intimidate it.
Keyboard & Mouse support can now be installed on the left or right side of the chassis, and used suitable for both right and left handed people.

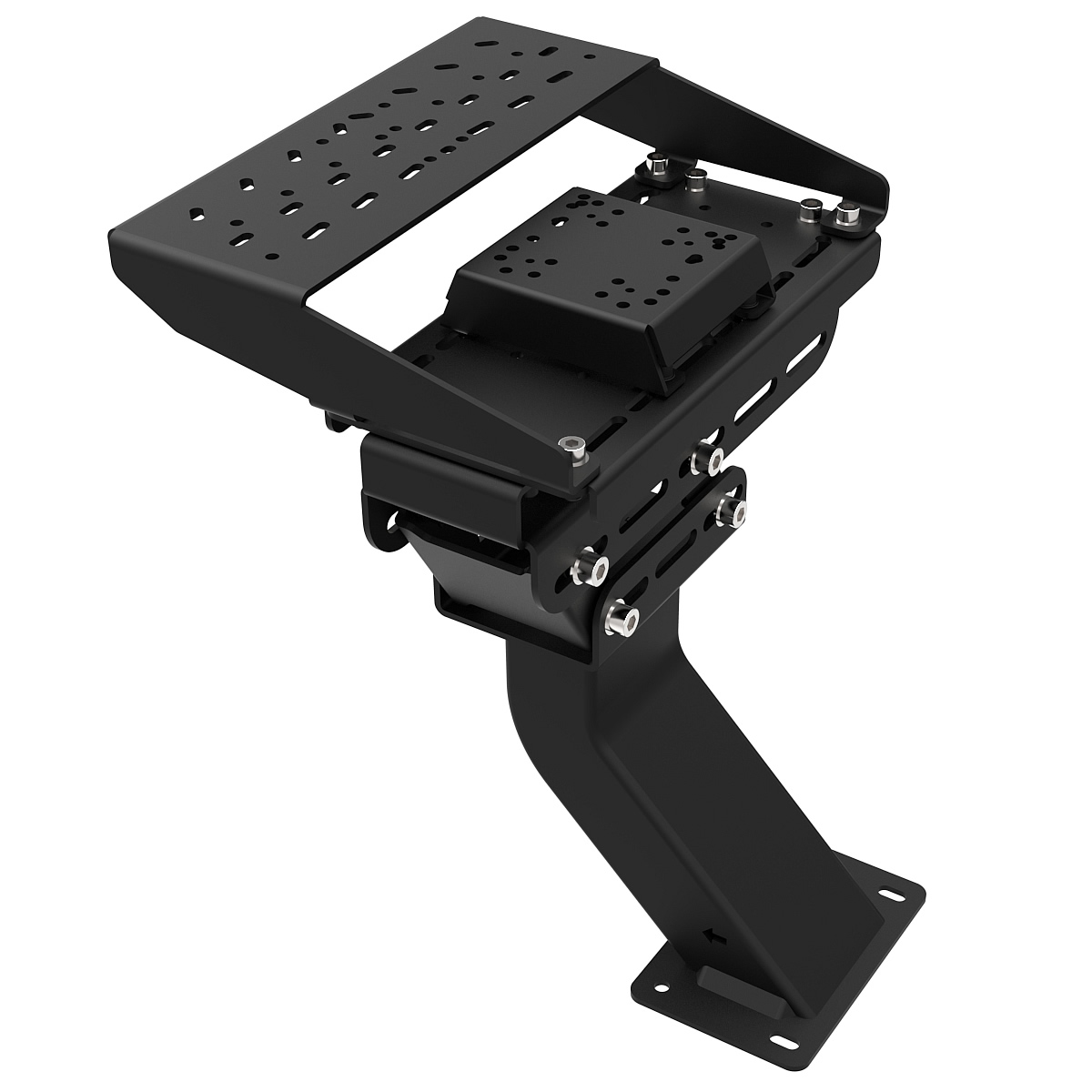

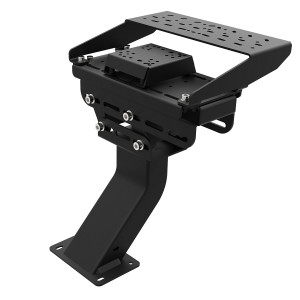

Shifter and Handbrake support revised to offer maximum rigidity, as well as many different adjustability options.
New ! design seat plates, to ensure that every customer will find the right position to race. Choose yours from a wide range of RSeat Eco-Leather or Alcantara, as well as a selection of SPARCO Seats. You can also install all bucket seats you want (side mounting, and bottom mounting).
New ! Sturdy screen support attached directly on the Frame, from 24" up to 49" 32:9 Ultra wide monitor.
Buttkicker Support with easy installation, and supports all Buttkicker models including Buttkicker Gamer 2, Pearl THMP1, ButtKicker Simulation Kit, Mini LFE.
[ Frame only ] The price does not include the bucket seat. You can choose with or without bucket seat, or choose the seat of your choice from RSeat or SPARCO in the options below.
The addition to the cart will calculate the final price automaticaly. For a better overall protection, the seats are delivered directly in the box of your chassis. Non-contractual photo
- Availability: In stock
- Model: B1 Black
- Box Weight: 65.00kg
- Package: 127.00cm x 67.00cm x 70.00cm
Available Options
OVERVIEW
NEW! B1 GT / FLIGHT COCKPIT
- Ultra durable and stable construction.
- Support any Direct Drive wheel and professional pedals with load cell or hydraulic
- Install any attachment left or right side of the chassis Including Shifter, Keyboard and mouse tray, Tablet Buttonbox mount
- Applicable for users from 127cm (4’2″) up to 200cm+ (6’67″+)
- Seating position Rally/GT
- Modular Frame (You can upgrade with accessories)
- Seat Sliders Included.
- Footprint dimensions: L x W 1780 x 624 mm. (70” x 24.6””)
- All tools and screws to attach your wheel and pedals are provided
- 5 year Warranty on all RSeat Manufactured components.
- Packaging Box: L x W x H 128 x 64 x 69cm (50.4" x 25.2" x 27.2" )
- Weight: 65kg (143lbs)
- 100% Made in EU: Engineered, Designed and Manufactured in Europe.
- Attention: Please select your seat according to your waist size. No exchange will be granted in case of wrong selection.
Accessories available in options :
Keyboard and Mouse tray Upgrade kit
| |
Chassis Monitor Stand Upgrade Kit
| |
Tablet / Buttonbox Upgrade kit
| |
B1 Shifter / Handbrake Upgrade Kit
| |
| Buttkicker Mount Upgrade kit
|
| NEW! SIMUCUBE1, SIMUCUBE2 Sport / Pro / Ultimate, Mige mount
|
Dimensions :

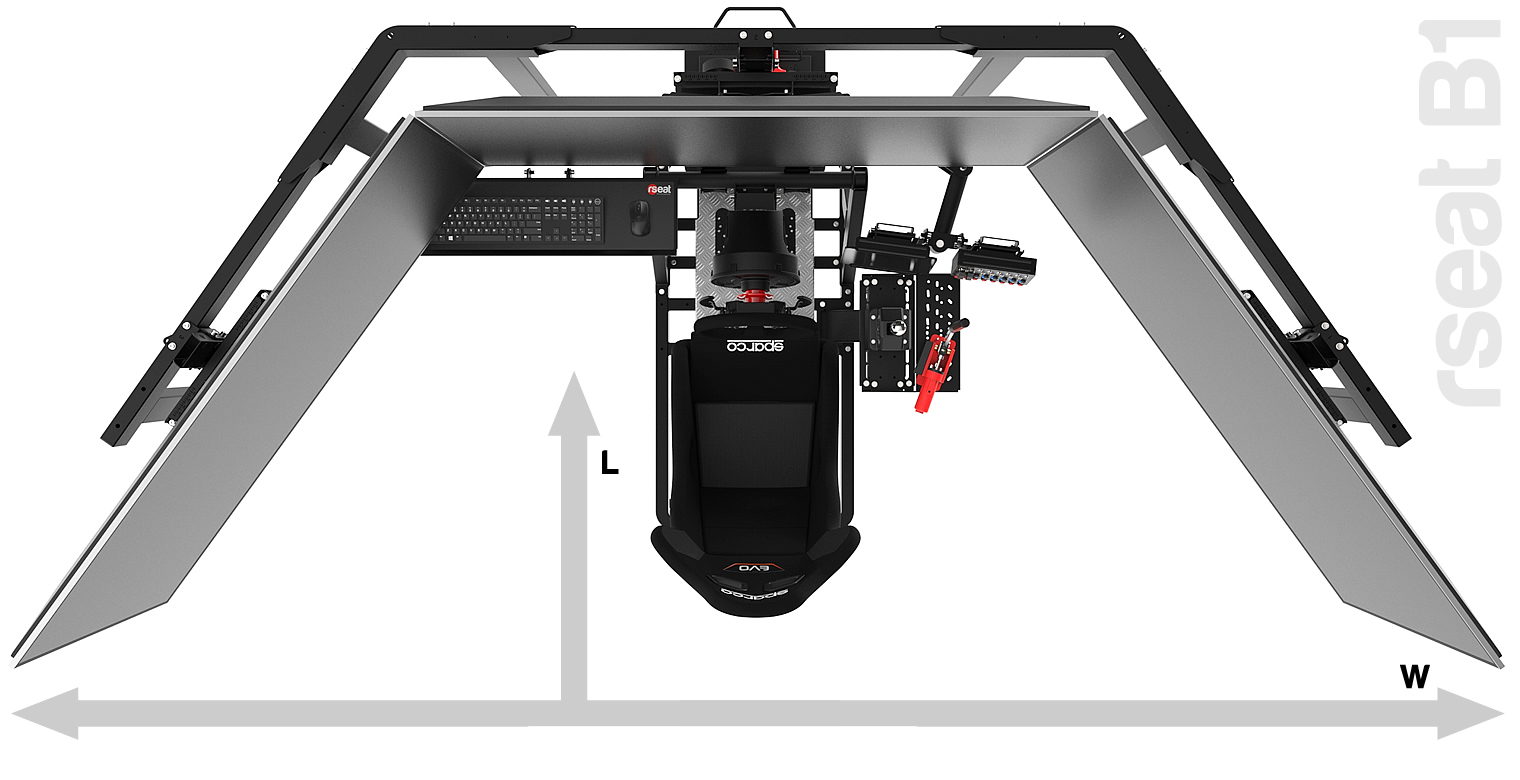

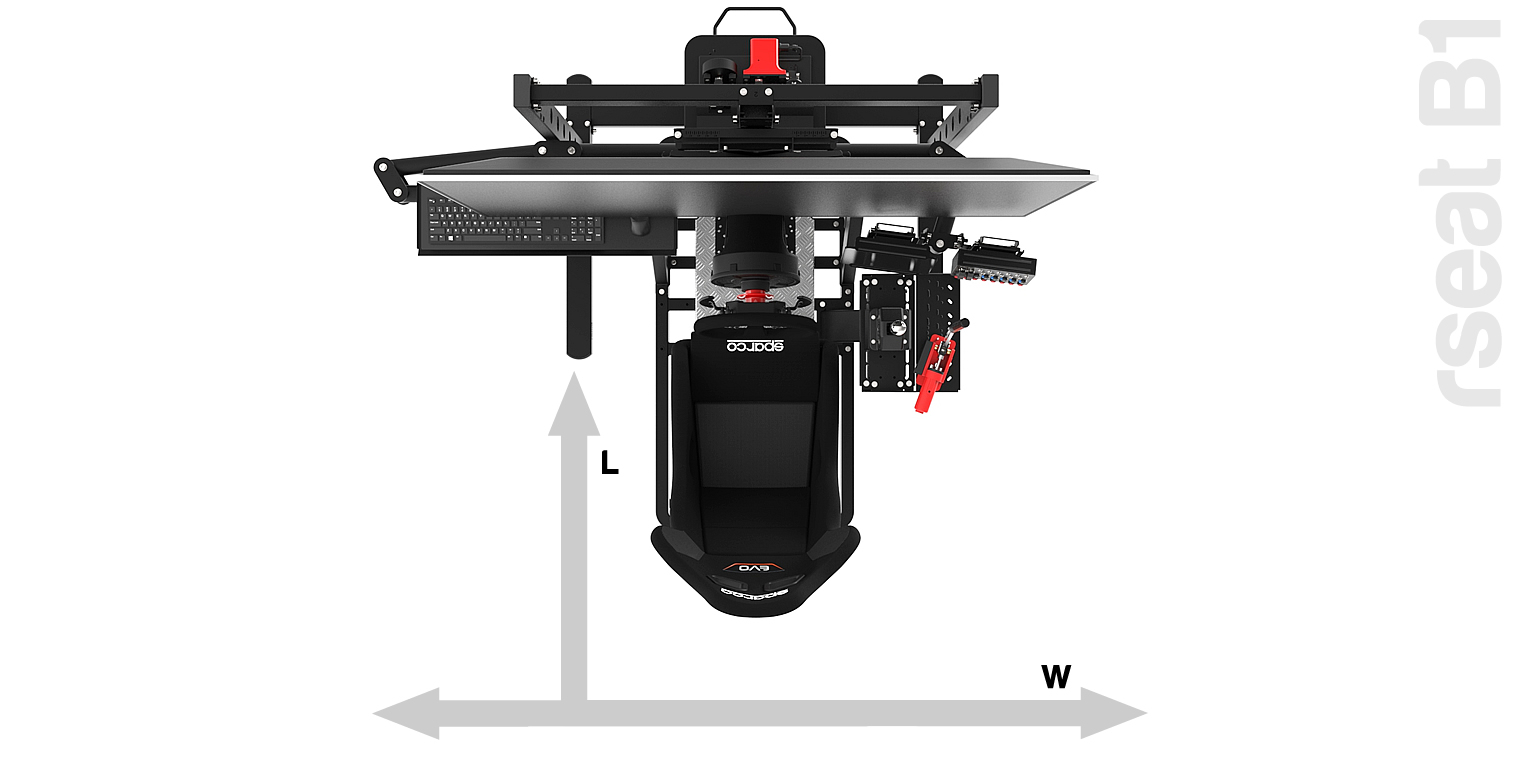

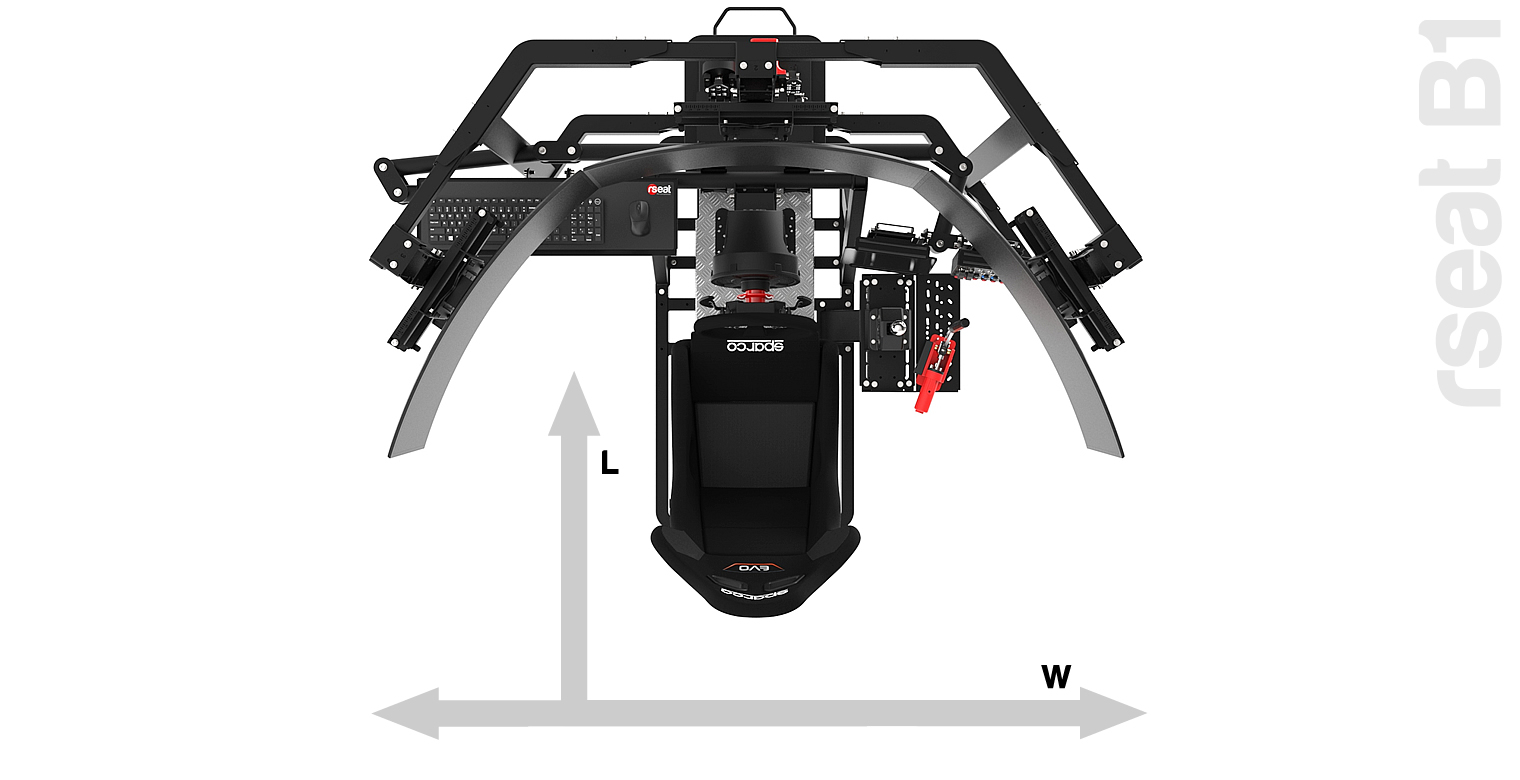

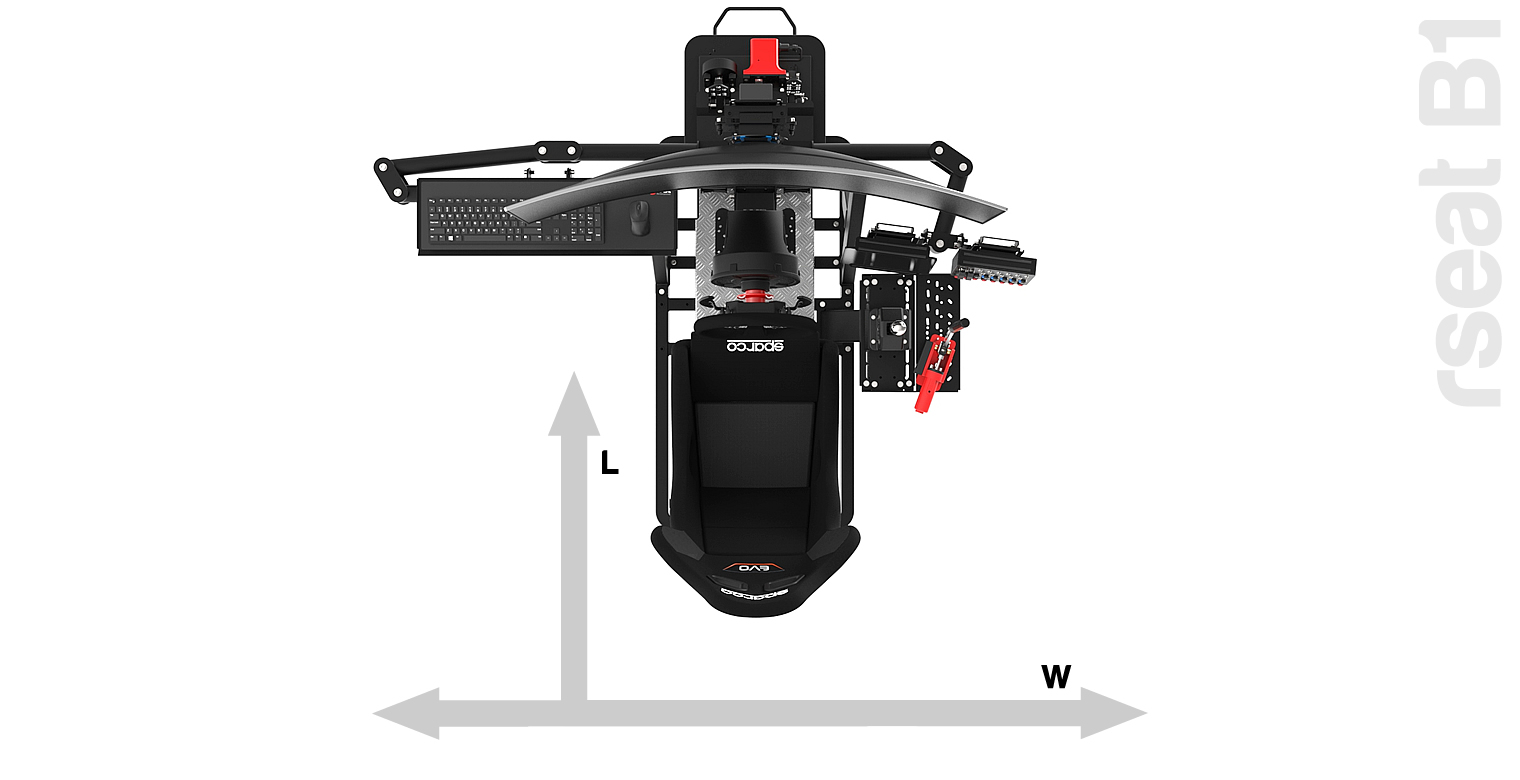

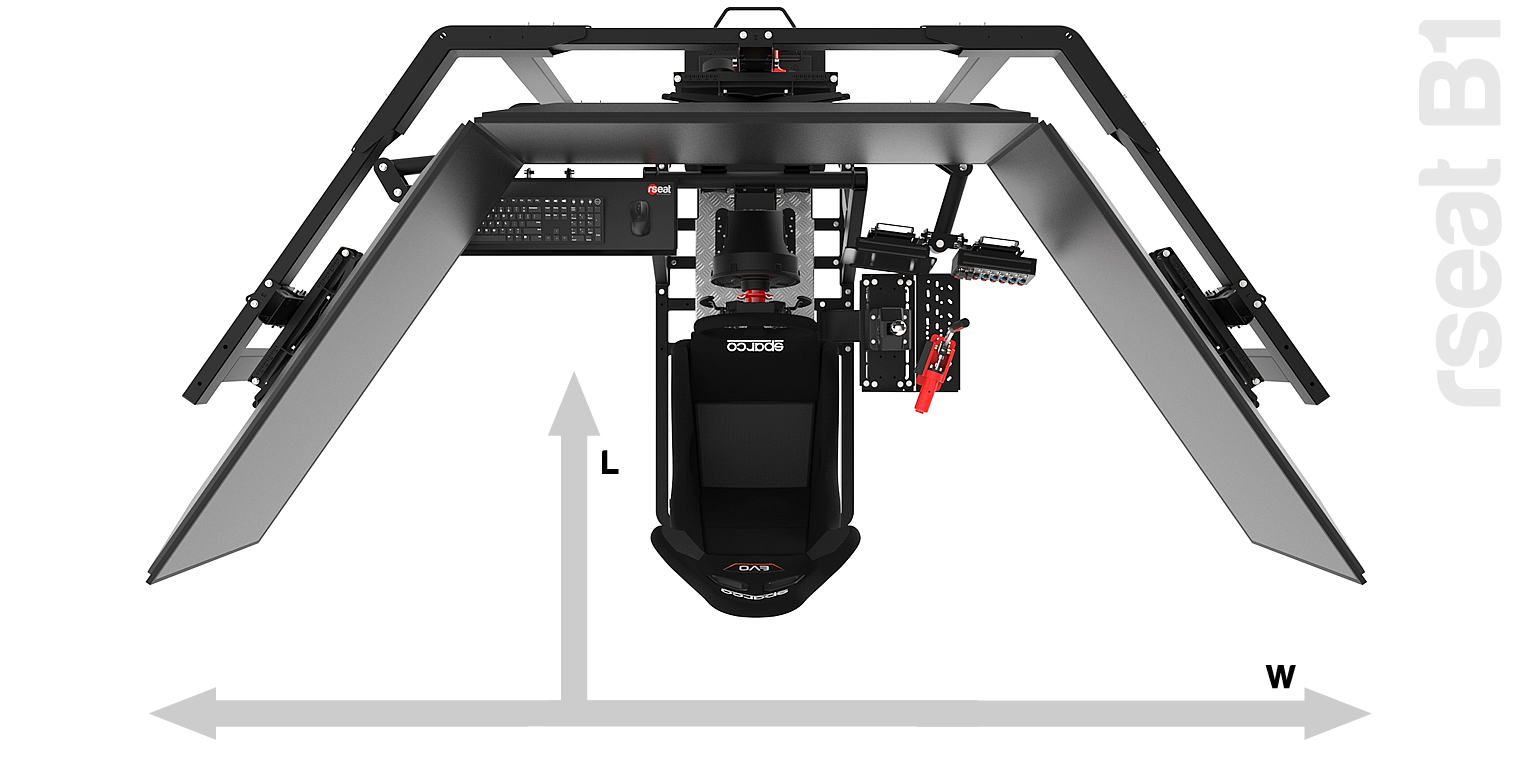

Recommended space to install the B1 depending on the setup :

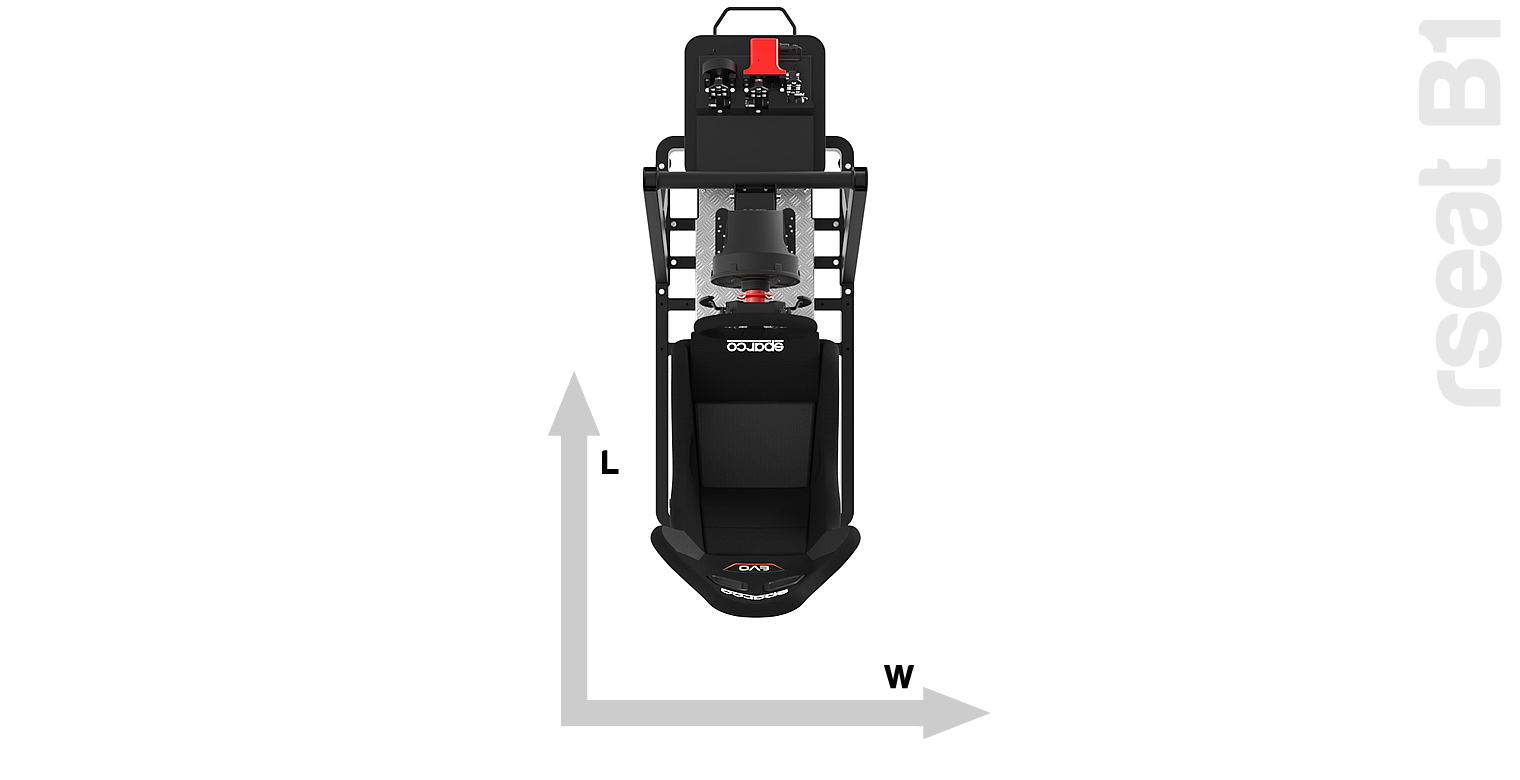

1. B1 Only :L : 1780mm/70inch W : 624mm/24.6inch
L : 1780mm/70inch W :2000mm/78.7inch
L : 1780mm/70inch W :2000mm/78.7inch
L : 1780mm/70inch W : Min 2000mm/78.7inch Max 2200mm/96.6inch
L : 1780mm/70inch W : Min 2500mm/98.4inch Max 3100mm/122inch
L : 1780mm/70inch W : Min 3350mm/132inch Max 4500mm/177inch
